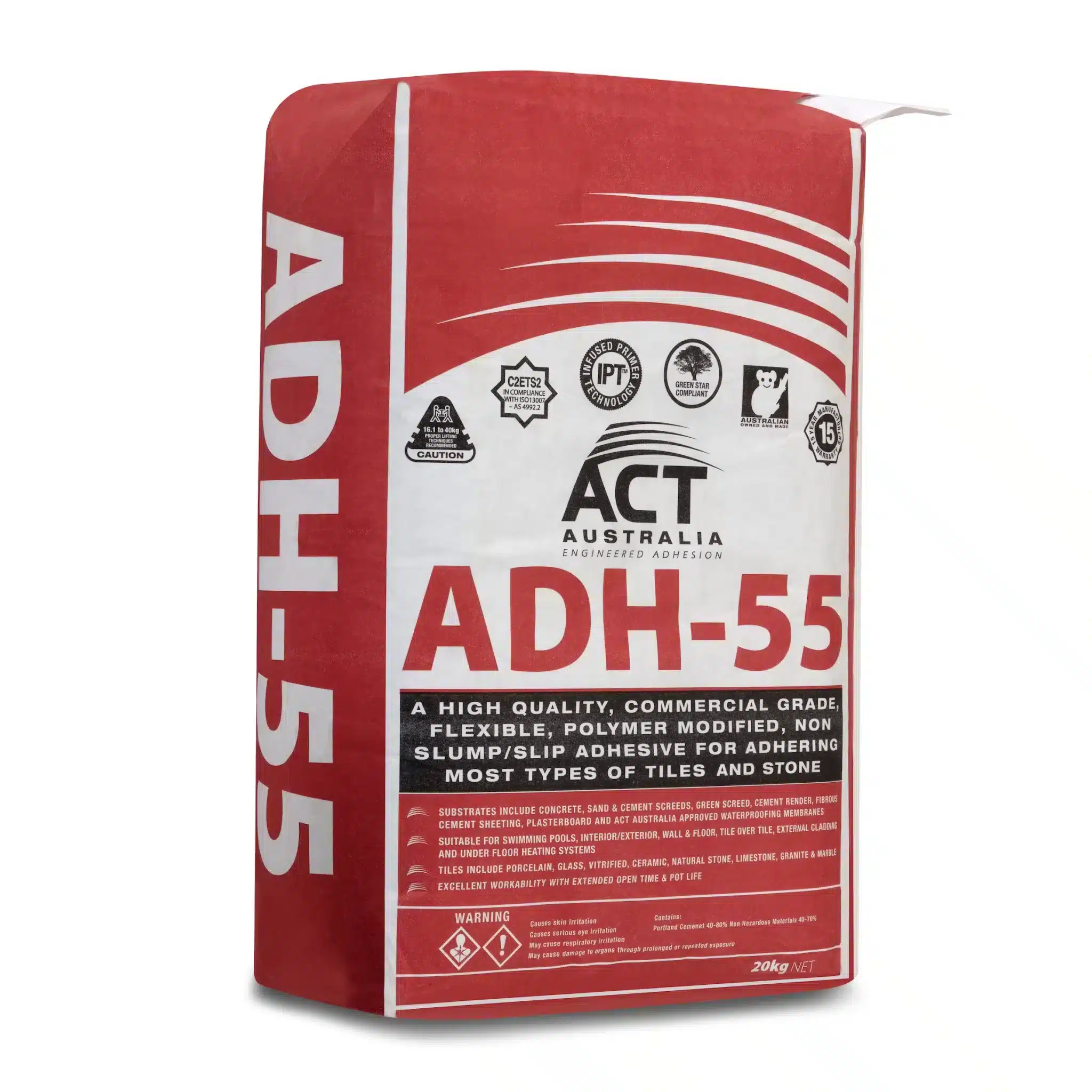

ADH-55 Polymer Modified Adhesive 20kg

High-strength, premium quality, flexible, polymer modified, cement-based tile adhesive used for wall & floor applications. Recommended over:

  • Concrete
  • Green screed
  • Cement render
  • Fibrous cement sheeting
  • Plasterboard
  • WP-1 and ACT Australia approved under tile waterproofing membranes

Features & Benefits

  • C2 – High Adhesion Strength
  • E – Extended Open Time
  • T – Non-Slip/Non-Slump
  • S2 – Highly Deformable Adhesive
  • ≤1mm crack bridging capability
  • Infused Primer Technology (IPT)
  • Accommodates thermal movement
  • Hydrate curing
  • Superior workability
  • Water washable & low odour
Performance Data
Exceeds the performance requirements of AS4992 Tensile adhesive strength ≤1.0MPa (28 days)

Suitable For:

  • Swimming Pools
  • Concrete (7 Days)
  • Sand & cement screeds
  • Green Screeds (24 Hours)
  • Rendered surfaces
  • Blockwork
  • FC Sheet & Plasterboard
  • Internal & external
  • Existing tiles
  • Adhesive & grouting of glass mosaics in swimming pools
  • WP-1 & ACT approved waterproofing membranes
  • Areas covered under AS3958-2007



Limitations

  • Not suitable for tiling directly over 100% polyurethane or fibreglass waterproofing membranes.
  • Not suitable for tiling directly over plastics and metals.
  • Not suitable for tiling directly over Masonite, MDF, timber, plywood or particleboard.
  • Not suitable for moisture sensitive stone such as green marble or manmade conglomerate products.
  • External tiling should not exceed 2.7m in height.
  • Suspended concrete slabs must conform to AS3958.1-2007 for maximum deflection. All post-tensioned concrete slabs must be treated as flexible substrate.
  • If in doubt, contact ACT Australia Technical Services for further information and advice.



Substrate Preparation

All substrates to be tiled must be clean, dry, free from dust, wax, oil, grease, laitance, curing compounds, paints (incl. overspray), coatings and all contaminants which may cause adhesion failure. Fibrous cement sheeting & plasterboard must be fixed as per manufacturers recommendations and should be sponged down with clean water to remove dust. Waterproof boards such as Scyon Secura and Cemintel Constructafloor must be primed with ACT PR-1 or if in wet area waterproofed with ACT WP-1. If tiling over existing tiles, tiles must be sound and not loose or drummy, tiles must be clean and free from any contaminants which may cause adhesion failure, if in doubt, good practise is to run a grinder over the surface to remove possible unknown contaminants. Ensure all dust is removed prior to spreading adhesive.

Priming
In normal circumstances no priming is required as ADH-55 has unique Infused Primer Technology (IPT). To test substrate, sponge liberal amounts of water onto the substrate and ensure water absorption is taking place. If so, then only sponge down with clean water prior to spreading adhesive. If water is beading or no absorption is taking place, prime with PR-1 impervious primer.

Mixing
20kg of ACT ADH-55 powder will require approximately 5 litres of clean drinking water. Slowly add ADH-55 powder into a clean bucket with the measured water. Slowly mix with a quality drill & mixing paddle to ensure a smooth, lump free toothpaste consistency. Leave the mix for 3 minutes then re-stir. The adhesive is now ready for use.

Movement Joints
Movement joints must be incorporated within the tiling system in accordance with AS3958.1-2007. Ensure movement joints are free of all adhesive and grout residue.

Clean Up
ADH-55 should be removed from the surface of tiles using a clean damp sponge while the adhesive is wet. Tools and equipment should be scrubbed clean with water while the adhesive is still wet.

Pot Life
3 hours at 23 ̊C and 50%RH
Setting time, 24hrs at 23 ̊C and 50% RH

Application
All workmanship must be in accordance with AS3958.1-2007. After mixing apply ADH-55 with the appropriate size notch trowel for the application. Ensure to work the adhesive to the substrate for good adhesion. Adhesive should sit up and not slump whilst being wet and tacky prior to laying tiles. Open time is approximately 30 mins at 23 ̊C. If the adhesive has skinned over prior to laying tiles, then remove and apply fresh adhesive. Ensure minimum adhesive bed thickness is 2mm for wall & 4mm for floor applications depending on size of tile. Do not tile in temperatures below 5°C and greater than 34°C.

Grouting
Use ACT Australia recommended grouts. Including ACT SPECTRUM Futura, GRT-20 or GRT-4 White Wall Grout. Ensure grout joints are clean of ADH-55 residue prior to application of grout.

Drying
Allow minimum 24hrs for the adhesive to cure and set prior to grouting. For impervious substrates such as waterproofing membranes and or non-absorbent tiles further curing time will be required depending on site conditions and ambient temperatures. Ensure adhesive has set prior to grouting.

Coverage
A 20kg bag will cover approximately 15m2 with 6mm notch trowel & 9m2 with 10mm notch trowel on a good flat substrate.

Shelf Life
In unopened original packaging for up to 12 months when stored in a cool, dry environment off the floor.

Safety Directions
ACT Australia supports best practice in material handling. Appropriate gloves, dust masks, safety glasses & protective clothing should be worn. If product comes into contact with skin, wash off with soapy water. Avoid inhaling dust by wearing appropriate dusts masks. If swallowed drink plenty of drinkable water and seek medical advice. In case of contact with the eyes, rinse with clean water or eye was solution and seek medical advice.
